Industrial thermometer for thermocouple four channels mod. DTC14
Maximum versatility, usable in all industrial sectors.

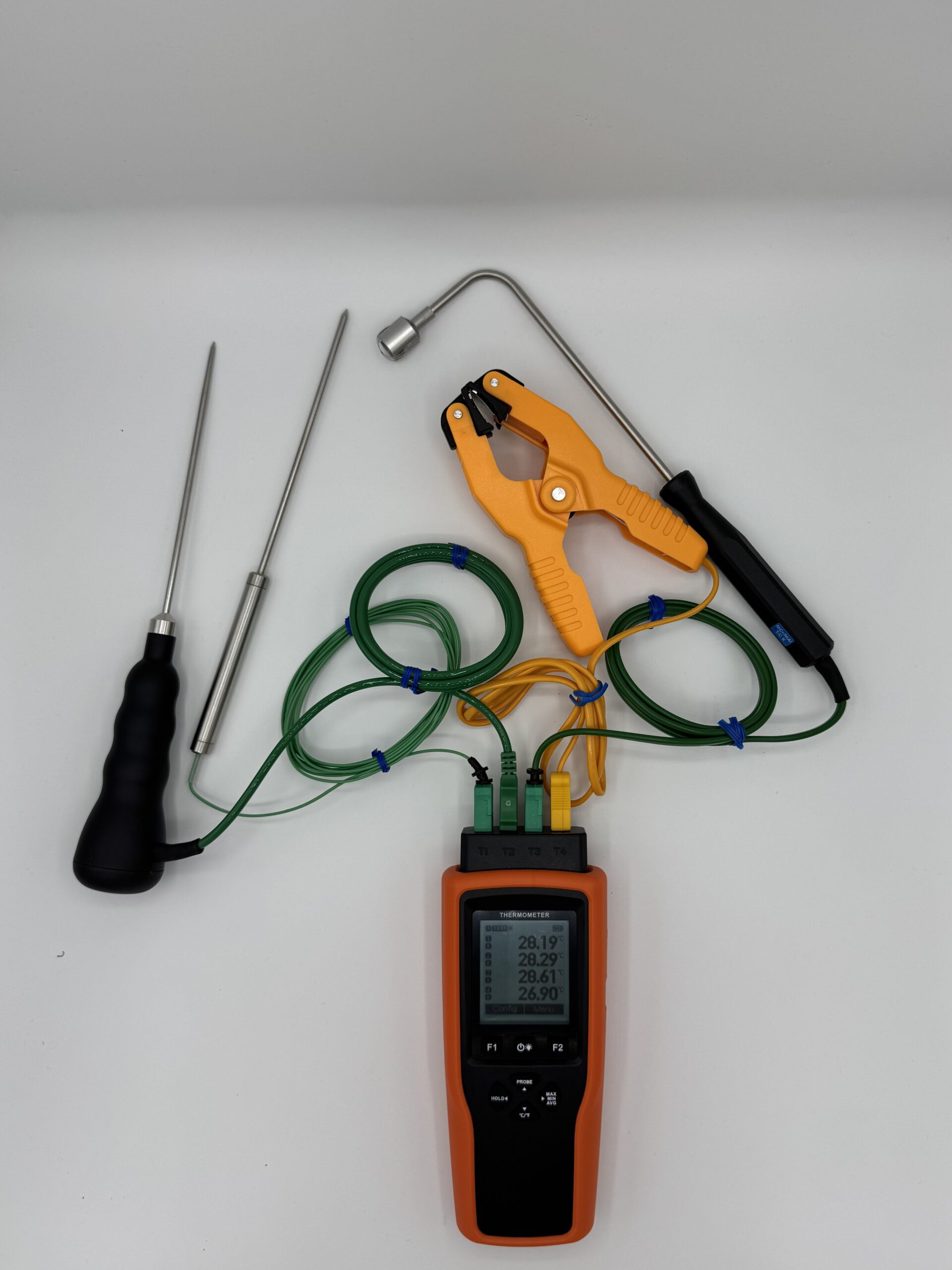

Four channels for K, J, T type thermocouples, with miniature connector.
Datalogger function up to 20,000 data with selectable acquisition times 1″÷ 24h
Mini USB output for exporting data in format: TXT, CSV, XLS.

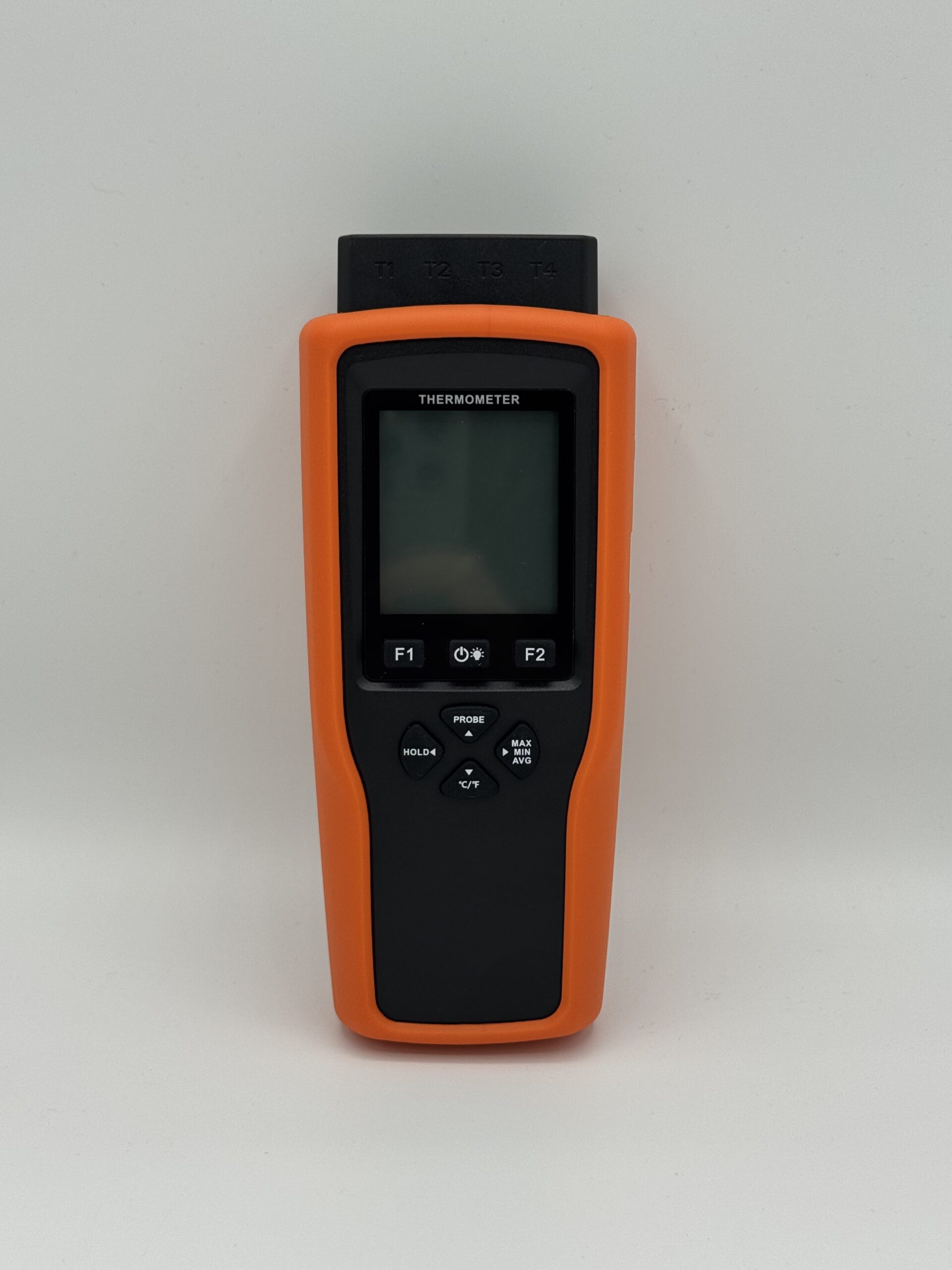

Backlit LCD display with display of the measured value and graphic trend, minimum, maximum and average detected.
Calibration and alignment function with the thermocouple on points of your choice.
Supplied complete with: hard case, 3 alkaline batteries, mini USB cable and rubber protection shell.
Thermocouples must be ordered separately.
Technical features:
Measurement ranges: K type probes – 200°C ÷ +1372°C
T type probes – 200°C ÷ +400°C
J type probes – 200°C ÷ +1200°C
Scale: °C/°F selectable
Resolution: 0.01° below 1000°C / 0.1° above 1000°C
Accuracy: < ±(0.3%|t|+0.40)℃ ; ±0.1℃ after calibration
Connection: miniature female input
Instrument operating range: – 10°C ÷ +50°C
Protection: IP52
Battery: 3 x 1.5V AAA alkaline batteries; 3 1.2V AAA rechargeable batteries
Battery life: 200 hours
Dimensions; 174x73x40mm
Weight: 216g
